NC feeder, leveller and decoiler 3 in 1 (auto pres

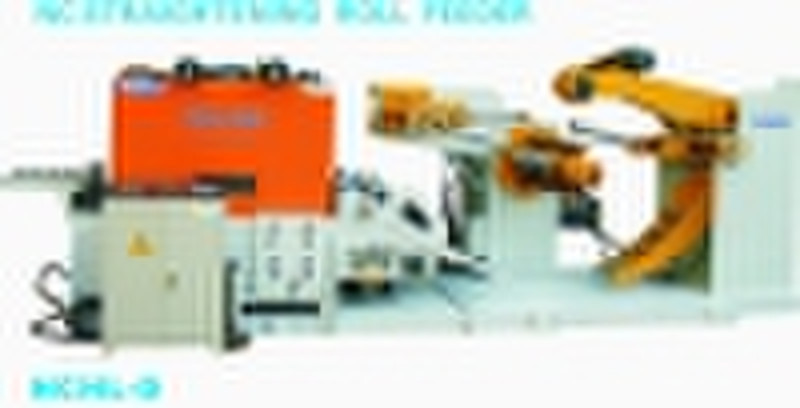

NC feeder, leveller and decoiler 3 in 1 (auto press machine) Our NCHL type automatic punch press machineincludes uncoiler straightener & NC feeder 3 in 1. Itadopts a user friendly and highly automatized precision operating system, high efficiency and easy maintenance ( the electrical parts are from the famousYaskawa electric in Japan). Specifications: NCHL-C & NCHL-D series Model:NCHL-300CNCHL-400CNCHL-500CNCHL-600CNCHL-800C Coil width(mm): 50-30050-40050-50050-60050-800 Coil thickness(mm): 0.8-4.5mm Max Coilweight(kg):2000, 2000, 3000, 3000, 5000Coil Inner. Dia(mm): 450-530Coil Outer.Dia(mm). max. : 1200 Main motor (kw): AC1.8,AC2.9, AC2.9, AC4.4, AC4.4Uncoil motor(kw): AC1.5, AC1.5, AC2.2, AC2.2, AC2.2 Straightener Rollers(set): Upper4/lower3 Feed direction & Level (mm): Customer request ±100 Uncoiler sensor: Electric eye Loopcontrol system Feeding speed( m/min): 0-16 Air supply (kg/cm2): 5Uncoiler expansion: Hydraulicoperation Model:NCHL-400DNCHL-500DNCHL-600D NCHL-800D NCHL-1000D Coil width(mm): 70-40070-50070-60070-80070-1000 Coil thickness(mm): 1.0-6.0mm Max Coilweight(kg):5000, 5000, 5000, 7000, 7000Coil Inner. Dia(mm): 450-530Coil Outer.Dia(mm). max. : 1600 Main motor (kw): AC5.5,AC5.5, AC5.5, AC7.5, AC7.5Uncoil motor(kw): 3.7kw, 3.7kw, 3.7kw, 5.5kw, 5.5kw Straightener Rollers(set): Upper4/lower3 Feed direction & Level (mm): Customer request ±100 Uncoiler sensor: Electric eye Loopcontrol system Feeding speed( m/min): 0-16 Air supply (kg/cm2): 5 kg/cm2Uncoiler expansion: Hydraulic
